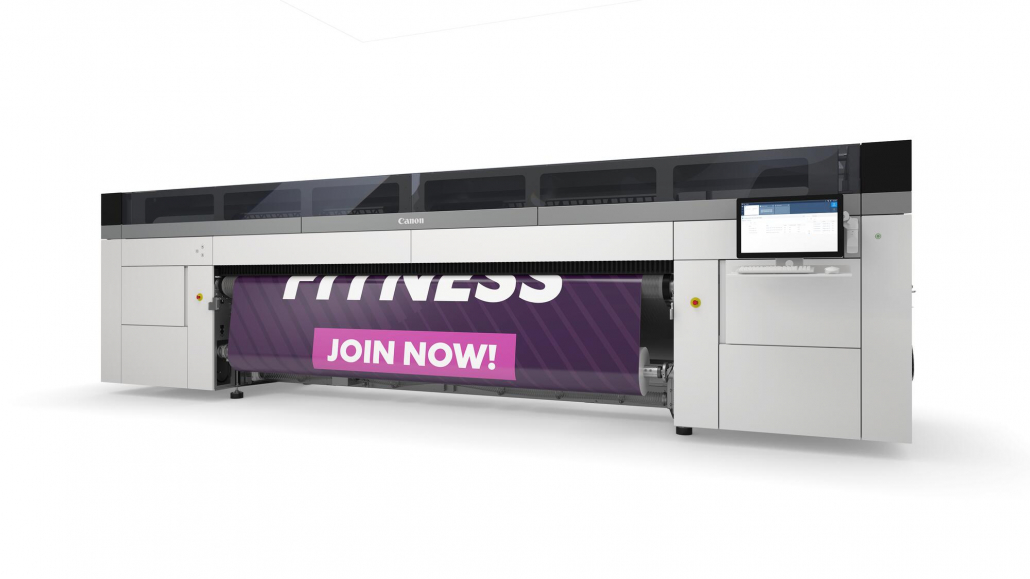

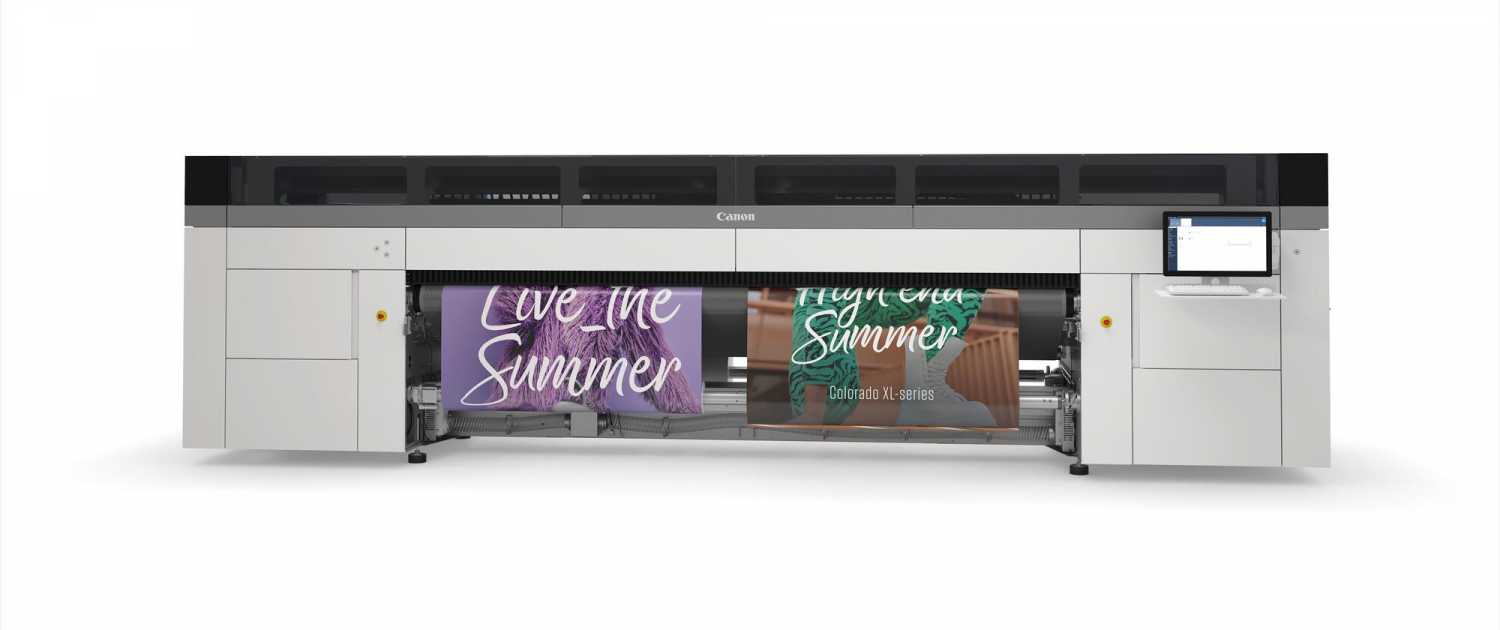

Meet the Colorado XL-series, a 3.4m hybrid graphics production printer designed to handle both flexible and rigid media with equal speed and ease! Based on the proven UVgel technology and with one modular design to choose what you use.
One base printer that can be configured and upgraded in the field. The base technology is the unique UVgel technology that is also a proven ink technology used in the 1.6m Colorado series.
The Colorado XL-series is designed for future-proof, in-field upgradeability. You invest only in the productivity level you need today. Then upgrade to easily increase options and productivity as your business grows.
You can explore and produce a growing variety of big, bold graphics applications with just one printer. Everything you need for your everyday success today while focusing on the future.
Start with the speed and options you need today and upgrade as your business grows. High uptime, low maintenance, and proven low TCO make the Colorado XL-series a smart, reliable investment.
From low energy curing and minimal gel use to durable prints that reduce lamination, the Colorado XL-series helps cut waste and resources. Smart automation, recyclable packaging and reduced service visits all support your sustainability goals.

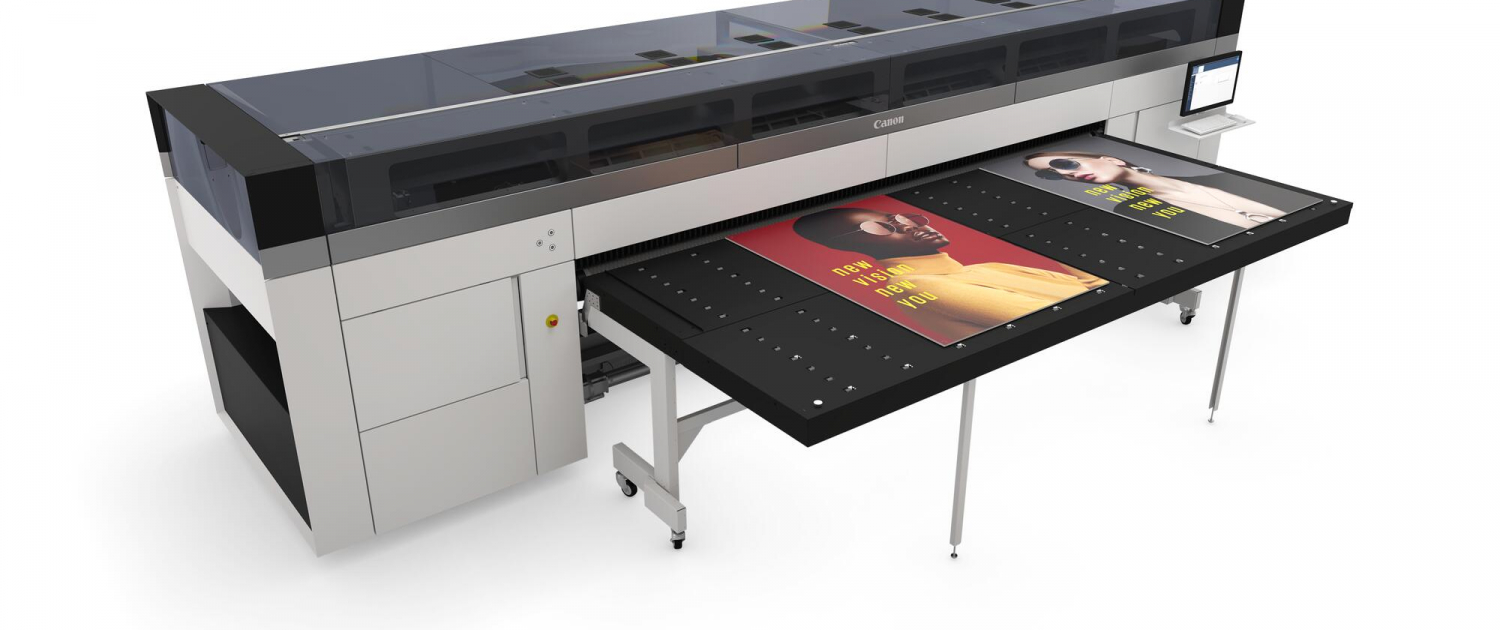

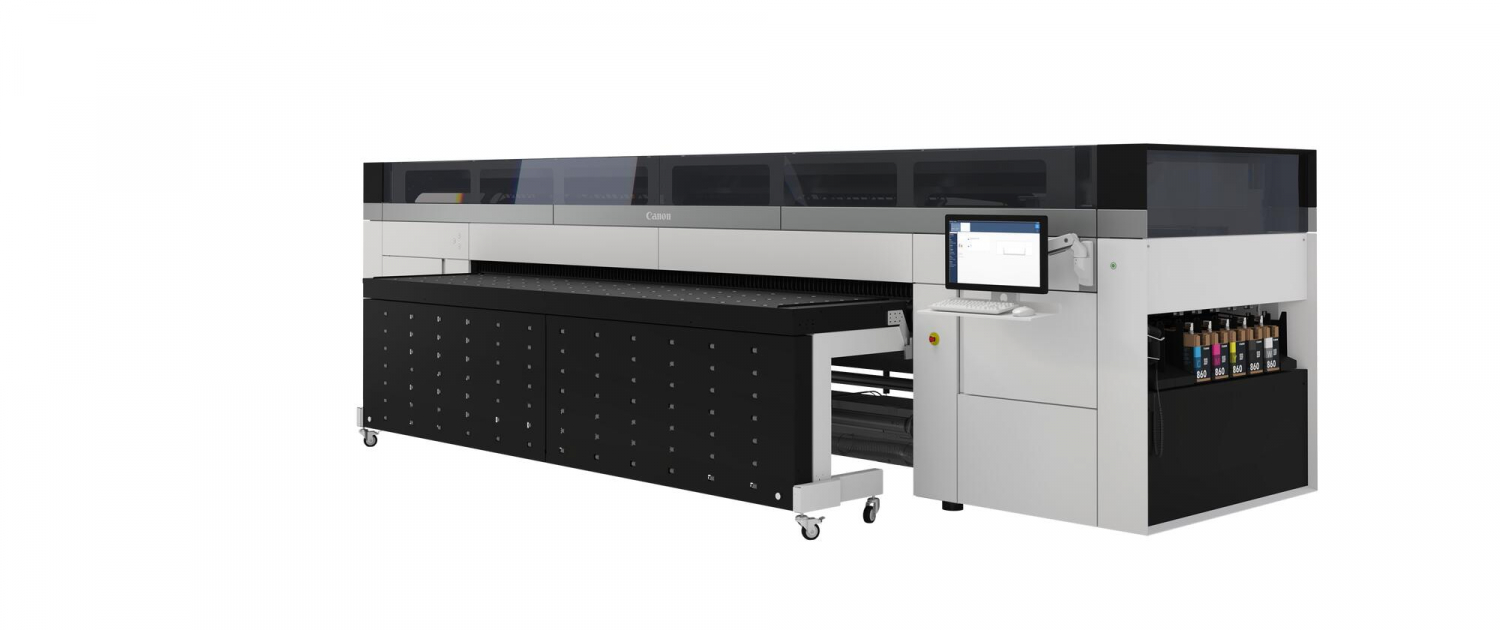

From mixed flexible and rigid media, to rigid and rolls only. You’ve got options and the ability to upgrade in the field when desired.

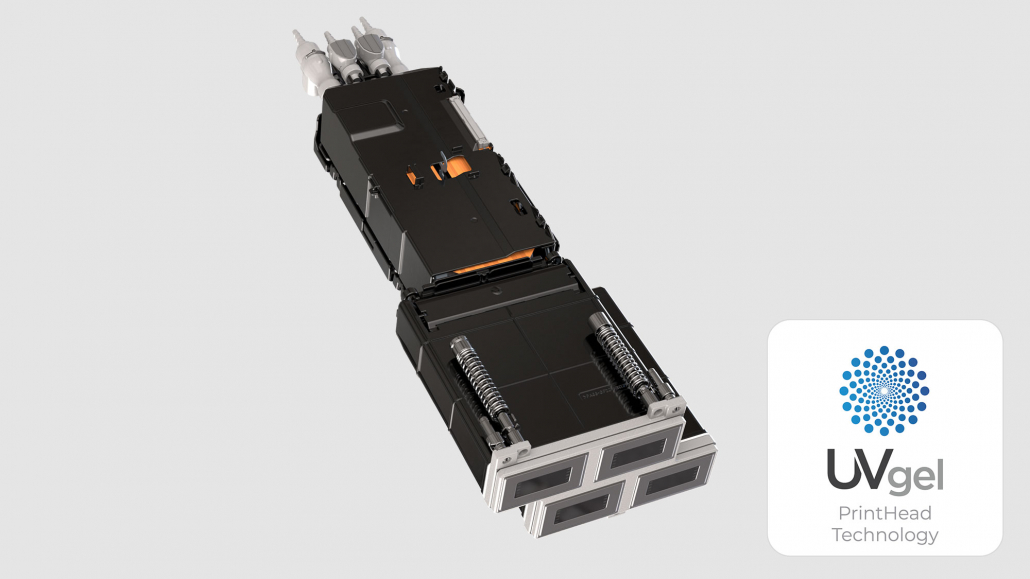

At the heart of the Colorado XL-series is our in-house developed and manufactured UVgel 850 PrintHead technology. These are so advanced that we only need two printheads for the regular CMYK colours and an optional third printhead for printing UVgel White. Designed for productive, high-quality large-format graphics, each printhead has 4,544 nozzles, with automated nozzle monitoring and instant correction.
The Colorado XL-series introduces our unique UVgel TRIdrive (Three Roller Interactive) vacuum belt system. It’s designed to help limit errors at job start-up, for easy loading, highly precise media positioning and reliable unattended printing that helps users create razor-sharp applications that truly impress.
The Colorado XL-series has an agile and precise printhead carriage that features UVgel DynamicMotion Control. This helps to ensure exceptional print quality even with challenging media. It uses highspeed, high-resolution machine vision technology that actively tracks any micro movement of the media while the carriage is travelling. It recalibrates the printhead positioning on-the-fly for unmatched precision and alignment of print passes, helping to provide flawless results even at high speeds.
Our unique UVgel FullBeam Curing opens up a world of high-end applications and incredible colour results. The curing beam is separated from the printhead carriage and can apply light continuously over the full width, up to 3.4 meters. You can cure up to five high-density layers, all in one pass, over the full width of the media. Securing perfect quality without UV banding.
| Colorado XL7 roll-to-roll | Colorado XL7 hybrid | |
|---|---|---|
| Type | Roll-to-roll printer | Hybrid: roll-to-roll and rigid printer |
| Printing method | UVgel piezoelectric inkjet | UVgel piezoelectric inkjet |
| Media transport | TRIdrive vacuum belt system unattended roll to roll operation | TRIdrive vacuum belt system for controlled rigid transport and unattended roll to roll operation |
| Rigid tabels | No | 0,75 meter and 1.50 meter |
| Print speed | Max. 211 m2/hr | Max. 211 m2/hr |
